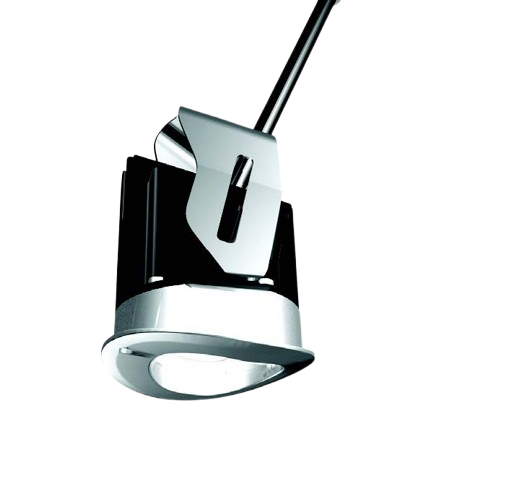

Handrail lightingLEDpod XL25

Color

• 2200K
• 2700K
• 3000K
• 4000K
• 5000K
• Amber
• Also available in Blue, Green, Red, and custom color temperature (as special order)

CRI

• 80-85

Binning

• 2 MacAdam Step

Driver

• 350 – 500mA Constant Current (provided with fixture)

Control

• DALI
• 0-10V
• DMX (for dimming only, not for individually addressed LEDpod)

Distribution

• Symmetrical
• Asymmetrical

Tube Size

• Ø 1.90” (48mm), Max. wall 0.2in (5.1mm) + Flat RHS †

Cut Out

• 0.99″ (25mm)

Weight

• 0.08 LBS (0.040kg)

† Min 1.5″ height required
