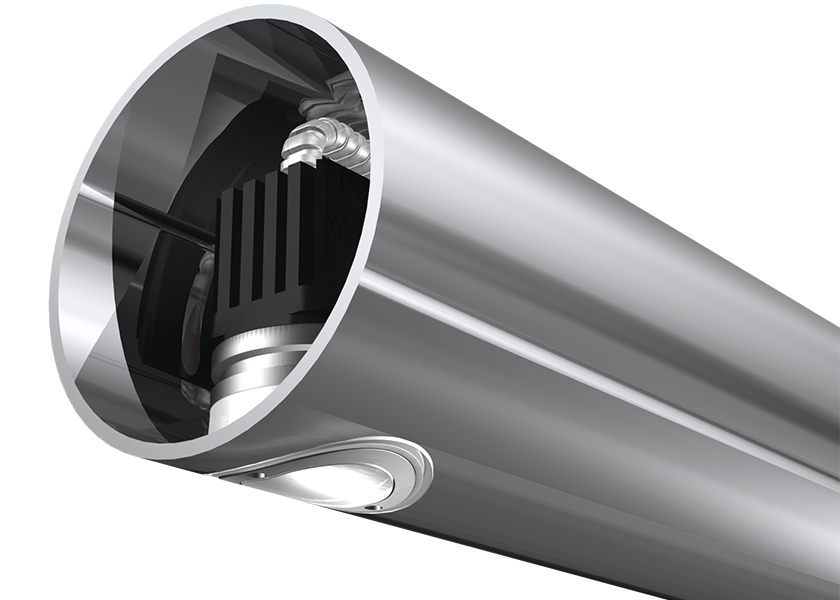

Handrail lightingLEDpod 50

Color

• 2700K
• 3000K
• 3500K
• 4000K
• Amber
• Also available in Blue, Green, Red, and custom color temperature (as special order)

CRI

• 80-85

Binning

• 3 MacAdam Steps

Driver

• 350 – 500mA Constant Current (provided with fixture)

Control

• DALI
• 0-10V
• DMX (for dimming only, not for individually addressed LEDpod)

Distribution

• Symmetrical
• Asymmetrical

Tube Size

• Ø 1.75” – 2.00” (48-50mm), Max. wall 0.22in (5.5mm) †

Cut Out

• 0.99″ (25mm)

Weight

• 0.16 LBS (0.074kg)

* All IP rated luminaires tested to AS60529-2004 Degrees of protection provided by enclosures (IP Code)
† Others sizes available upon request
